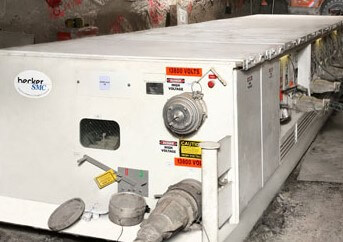

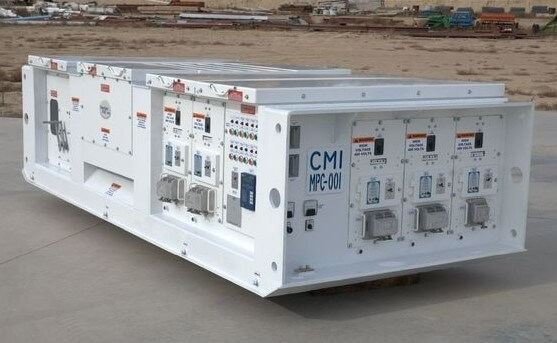

In the high-stakes world of US mining, electrical safety isn’t a suggestion—it’s survival. Arc guards represent the frontline defense against the explosive energy of an arc flash, which can liquefy metal and destroy switchgear in a heartbeat. Becker Mining USA builds these systems to withstand the brutal reality of underground and surface operations, ensuring that a millisecond fault doesn’t turn into a month of lost production.
Key Takeaways
- Instant Mitigation: Detects and isolates electrical faults in milliseconds to prevent catastrophic equipment failure.
- Ruggedized Engineering: Built specifically to survive the dust, vibration, and humidity of US coal and hard rock mines.
- Operational Continuity: Minimizes downtime and repair costs by limiting incident energy during a fault.
- Regulatory Shield: Aligns with federal safety standards to simplify compliance during site inspections.
Why Is Arc Protection Critical in Modern Mining?
Arc guards are essential because they provide a high-speed "kill switch" for the extreme thermal energy released during an electrical fault. In the confined quarters of a mine, an arc flash can exceed $35,000^\circ\text{F}$, creating a pressure wave that turns debris into shrapnel. Without specialized detection, these events lead to severe injuries, total equipment loss, and indefinite operational shutdowns.
Operational Risk Clusters
- Safety Shielding: Protects crews from debilitating burns and blast-related injuries in restricted underground spaces.
- Asset Protection: Safeguards high-value assets like longwall systems, continuous miners, and surface substations from total burnout.
- Cost Control: Prevents the massive financial hemorrhaging associated with emergency switchgear replacement and unplanned outages.
GET IN TOUCH
In a hurry? Call us at 276-285-3841
How Do Arc Guards Work in High-Demand Environments?
Modern arc guards utilize a dual-trigger system involving optical sensors and current monitoring to confirm a fault. By "seeing" the light of the flash and "sensing" the spike in current simultaneously, the system can trip a breaker before the arc reaches its peak destructive power. This multi-layered approach eliminates "nuisance trips" while ensuring maximum speed when a real threat emerges.
The Strategic Framework: 3 Phases of Arc Mitigation
- Optical Detection:
- Deploy point sensors or fiber-optic cables within switchgear compartments.
- Capture the initial "flash" of light at the speed of physics to initiate the trip sequence.
- Current Validation:
- Monitor for abnormal amperage spikes that coincide with the optical signal.
- Prevent accidental shutdowns caused by external light sources or camera flashes.
- High-Speed Isolation:
- Send a direct signal to the circuit breaker's shunt trip or an ultra-fast earthing switch.
- Extinguish the arc in under 50 milliseconds to keep incident energy levels low.
What Makes Becker Mining USA Systems More Reliable?
Becker Mining USA engineers arc guards specifically for the "grit" of the mining industry rather than generic industrial settings. Surface-grade electronics often fail underground due to coal dust infiltration, extreme vibration, and high humidity. Our systems use ruggedized components and shielded enclosures designed to maintain 100% uptime in the harshest environments on earth.
Trade-Specific Hardware Features
- Vibration-Resistant Mounting: Prevents internal component fatigue caused by heavy drilling and blasting cycles.
- Sealed Optical Logic: Protects sensors from the "creepage" of coal dust and fine particulates that blind lesser systems.
- Modular Architecture: Allows for rapid "plug-and-play" replacement of sensors without re-wiring the entire cabinet.
"At-a-Glance" Comparison: Mining vs. Standard Protection
|
Feature |
Standard Industrial Relay |
Becker Mining Arc Guards |
|
Response Time |
100ms - 300ms (Slow) |
<50ms (Ultra-Fast) |
|
Detection Type |
Current Overload Only |
Optical + Current Logic |
|
Environmental Rating |
NEMA 1 (Clean Room) |
Ruggedized (Mine-Grade) |
|
Maintenance |
Complex Calibration |
Field-Replaceable Modules |
|
Incident Energy |
High (High Damage) |
Low (Minor Repairs) |
Are These Systems Compatible with Existing Infrastructure?
Yes, Becker’s arc guards are designed for seamless integration into existing switchgear and protection relays. You don't need to rip and replace your entire electrical backbone to upgrade your safety profile. Our engineering team specializes in retrofitting legacy distribution systems with modern, high-speed detection logic to bring older mines up to modern safety standards.
Expert Perspective: The "Hidden" ROI
"In my years on the North American mining circuit, I've seen operators sweat the upfront cost of arc protection. But here is the reality: the cost of one destroyed 4160V switchgear section is 10x the cost of the protection system. When you factor in the 3-week lead time for a custom replacement, the arc guards pay for themselves the very first time they trip." — Becker Field Engineer
GET IN TOUCH
In a hurry? Call us at 276-285-3841
Multi-Layered Entity Grounding
- Incident Energy: The amount of thermal energy impressed on a surface during an arc event, measured in $cal/cm^2$.
- O.C.G.A. Compliance: Meeting rigorous federal standards for electrical safety in hazardous locations.
- Shunt Trip: An accessory that allows a circuit breaker to be tripped remotely by the arc detection logic.
- Longwall System: A highly productive underground mining technique that requires massive, high-voltage power distribution.
Ready to Secure Your Mine’s Power Infrastructure?
In the mining industry, you don't get a second chance when an electrical fault occurs. Investing in arc guards from Becker Mining USA ensures your crew goes home safe and your production targets stay on track. Don't wait for a "near miss" to expose the gaps in your safety strategy—upgrade to field-proven, ruggedized protection today.
Protect your assets and your people with the industry's most reliable electrical safety hardware. Call Becker Mining USA to schedule your site-specific arc flash risk assessment.
Frequently Asked Questions
1. What are arc guards in mining?
Arc guards are specialized high-speed detection systems that identify the light and current of an arc flash event. They are designed to isolate electrical faults in milliseconds, preventing the catastrophic release of heat and pressure that destroys equipment and injures personnel.
2. Why is arc flash protection harder underground?
Underground environments are confined, meaning the pressure wave of an arc flash is amplified. Additionally, coal dust and moisture can degrade insulation over time, making a fault more likely, while also making it harder for standard sensors to operate reliably without "mine-grade" ruggedization.
3. Can I retrofit my old switchgear with these sensors?
Absolutely. Becker Mining USA specializes in integrating modern arc detection into existing power distribution systems. This allows you to achieve modern safety ratings and reduce incident energy levels without the massive capital expense of a total infrastructure overhaul.
4. How much downtime do these systems prevent?
By tripping in milliseconds, these guards often limit damage to a small "scorch" that can be cleaned up in hours. Without them, a full arc event can vaporize busbars and melt enclosures, leading to weeks or months of downtime for total equipment replacement.
5. Do these systems require constant maintenance?
While routine inspections are required by law, Becker systems are built for "set and forget" reliability. Our modular sensors and self-diagnostic logic alert your maintenance team if a sensor is obscured or damaged, ensuring the system is always ready to act.
